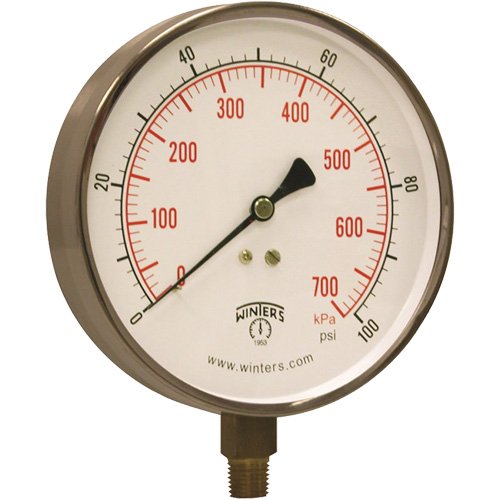

YB900-Contractor Pressure Gauge

• Economical stainless steel case gauge with brass wetted parts
• Zero adjustment screw
• Restricted orifice
• ASME B40.100 compliant and CRN registered
• Also measures in kilopascals (kPa)
• Applications include commercial air, water and steam services (with syphon), and more

Specifications

• Dial Diameter: 4-1/2"
• Pressure Range: 0 - 100 psi
• Connection: Bottom Mount
• Dial Type: Analogue

Additional Specifications

• Connection Thread: 1/4" NPT
• Accuracy: ±1% ANSI/ASME Grade 1A
• Manufacturer's Warranty: 5 Years
• IP Rating: IP52
• Case & Ring Material: IP52
• Lens Material: Acrylic
• Bourdon Tube Material: Phosphor Bronze
• Over-Pressure Limit: 25% for Pressures up to 1450 psi (9998 kPa), 15% for Pressures Over 1450 psi (9998 kPa)
• Working Pressure: Maximum 75% of Full Scale Value
