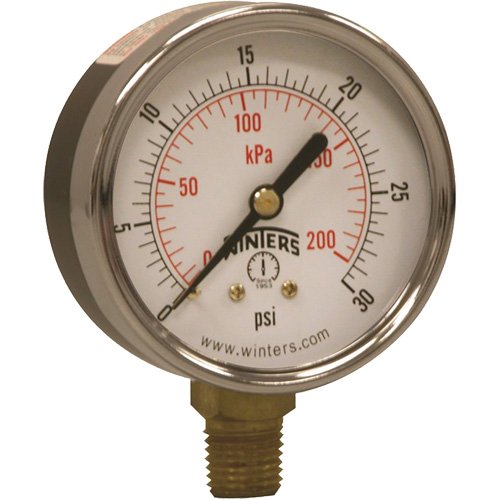

YB880-Economy Pressure Gauge

• Economical, all-purpose pressure gauge with brass wetted parts
• Friction bezel rings
• Black steel case
• ASME B40.100 compliant and CRN registered
• Also measures in kilopascals (kPa)
• Applications include plumbing, heating, air conditioning, pneumatics, hydraulics, water tanks, air compressors, water systems, and non-clogging and non-corroding media

Specifications

• Dial Diameter: 2-1/2"
• Pressure Range: 0 - 30 psi
• Connection: Bottom Mount
• Dial Type: Analogue

Additional Specifications

• Connection Thread: 1/4" NPT
• Accuracy: ±3-2-3% ANSI/ASME Grade B
• Manufacturer's Warranty: 5 Years
• IP Rating: IP52
• Bourdon Tube Material: IP52
• Working Pressure: Maximum 75% of Full Scale Value
• Ambient/Process Temperature: -40 to 150°F (-40 to 65°C)
• Over-Pressure Limit: 25% of Full Scale Value
