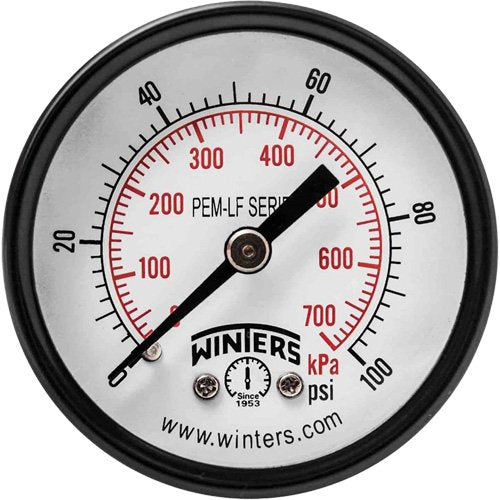

YB867-Economy Pressure Gauge
by Winters
Original price
$12.86
-
Original price
$12.86
Original price
$12.86
$12.86
-
$12.86
Current price
$12.86
- Economical, all-purpose pressure gauge with brass wetted parts
- Friction bezel rings
- Black steel case
- ASME B40.100 compliant and CRN registered
- Also measures in kilopascals (kPa)
- Applications include plumbing, heating, air conditioning, pneumatics, hydraulics, water tanks, air compressors, water systems, and non-clogging and non-corroding media
Specifications
- Dial Diameter: 2"
- Pressure Range: 0 - 100 psi
- Connection: Back Mount
- Dial Type: Analogue
Additional Specifications
- Connection Thread: 1/8" NPT
- Accuracy: ±3-2-3% ANSI/ASME Grade B
- Manufacturer's Warranty: 5 Years
- IP Rating: IP52
- Bourdon Tube Material: IP52
- Working Pressure: Maximum 75% of Full Scale Value
- Ambient/Process Temperature: -40 to 150°F (-40 to 65°C)
- Over-Pressure Limit: 25% of Full Scale Value
