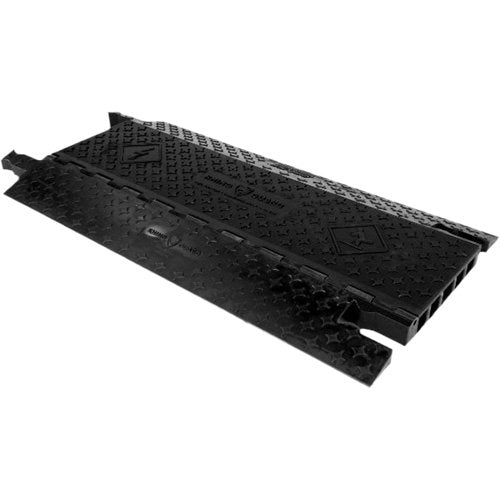

XJ445-RhinoGuard™ Cable Protector

• Superior Reaction Injection Molding (RIM): Produces lighter-weight parts with a higher strength-to-weight ratio
• Easier to connect and disconnect compared to cast molding
• Premium aesthetic appearance with no sharp edges, making it safer to handle
• Made with the most popular connector, compatible with other brands
• Polyurethane material offers higher load capacity/impact absorption, non-conductivity, lighter weight, and UV stabilized/weather resistance
• Snap on/off lid for easy field lid swapping, no fiberglass rods required
• Protects cables/hoses up to 1.3” outside diameter (ideal for 4/O cable), with a center channel accommodating up to 1.6” outside diameter (ideal for #2 AWG 5-wire banded sets)
• Diamond tread pattern designed for improved traction
• Protects cables and hoses effectively

Specifications

• No. of Channels: 5
• Length: 36"
• Width: 19.8"
• Height: 2"
• Channel Width: 1.3"
• Max. Load Capacity / Axle: 30, 000 lbs. (15 tons)

Additional Specifications

• Maximum Channel Outside Diameter: 1.32” with 1.6” center channel
• Colour: Black
