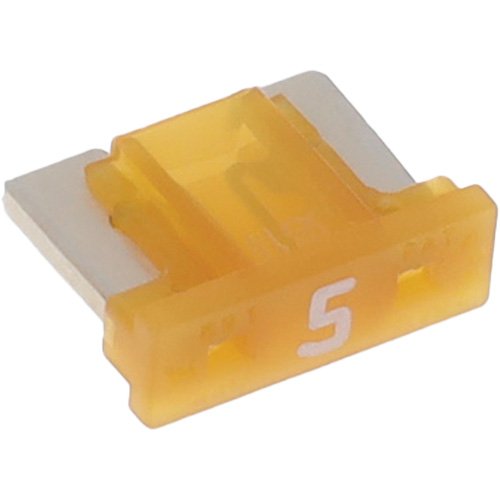

XJ359-LP MINI® Series Automotive Blade Fuse

• Colour coding indicates amperage rating
• High-contrast ampere stamps on housings aid identification
• See-through housings make it easier to see when fuses blow
• Simple to install and remove
• Checkpoints on top make it possible to measure resistance without removing the fuse
• Short blades offer additional material savings in fuse box design
• Fast-acting
• Tan housing indicates 5 A rating
• Silver-plated zinc terminals
• Complies with ISO 8820-9 & UL recognized as UL 248 special purpose fuse

Specifications

• Amps: 5 Amps
• Rating: 58 V
• Fuse Type: Cartridge

Additional Specifications

• For Use With: Cars, Trucks, SUVs, Offroad Vehicles, Buses, Watercraft (Approved by Littelfuse®)
• Net Weight: 0.4 g ±15 %
• Standard(s) Met: ISO 8820-9, UL-Recognized
• Interrupting Rating: 1000A @ 58 V DC
• Terminals Material: 1000A @ 58 V DC
• Recommended Environmental Temperature: -40 ˚C to +125 ˚C
