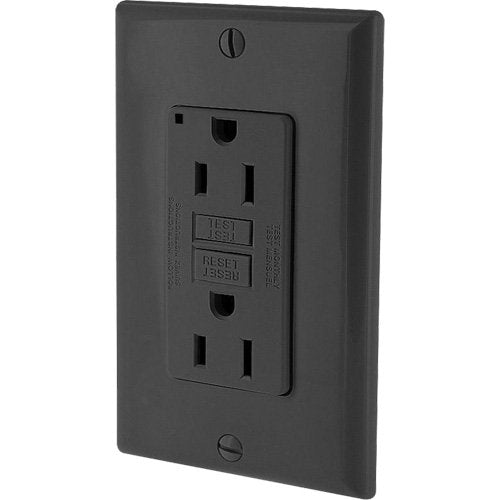

XI648-SmartlockPro® Self-Test GFCI Outlet

• Provides continuous ground fault protection and detects and trips on actual ground fault even when self-test is being conducted
• On initial power up, tests the GFCI within 3 seconds
• Auto adapts and shifts to more frequent testing if potential problem is detected
• Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
• Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
• Electronics are designed to minimize any false triggers
• Back and side wire capable
• External back wire clamps provide visual indication of proper wire seating
• Withstands high torque and resists wire pullout
• Standard brass self-grounding clip
• Improved immunity to high-frequency noise reduces nuisance tripping
• Advanced electronics design provides superior resistance to electrical surges and over-voltages
• Compatible with all Decora devices and wallplates

Specifications

• Voltage: 125 V
• Amps: 15 A
• No. of Outlets: 2
• Colour: Black
• Tamper Resistant / Non Tamper Resistant: Not Tamper-Resistant

Additional Specifications

• Standard(s) Met: UL (Federal Specification WC-596), CSA
• Power at Rated Voltage: 1 HP
• NEMA Configuration: 5-15R
• Strap Material: Galvanized Steel
• Trip Level: Galvanized Steel
• No. of Wires: 3
• Manufacturer's Warranty: 2 Years Limited
