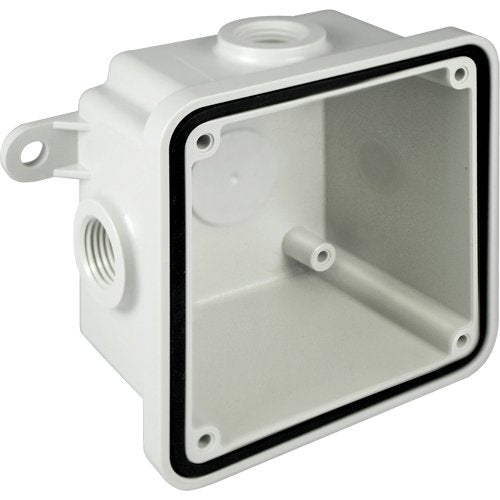

XE712-Vibratone® Molded Weatherproof Housing

• Molded thermoplastic neoprene-gasketed weatherproof housing for outside use for Vibratone® Electronic Horn
• Designed for routine signaling and fire alarm use
• Complete with mounting lugs; provided with 3 entrances for 1/2" conduit; 4-3/8" square box; 2-7/16" deep, offset mounting lugs on 5" centers
• Range of up to 200 feet
• Coded or sustained tones
• No duty cycle or interval limitations
• Fire Regulated 16-33VDC ; General Purpose Signal 12-24 V DC
• 99 dBA at 10' on axis
• Four wire terminal block and supervisory diode
• Type 4X when installed with panel mount gasket (included) or optional non-metallic weatherproof backbox (Model XE712)
• Marine rated
• UL, cUL and ULC listed
• CSFM listed

Additional Specifications

• Decibels: 99 dB
