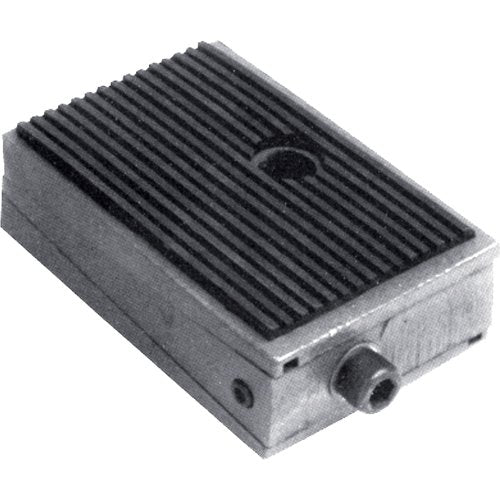

UP587-Vibra-Wedge Isolators

• Designed for the installation and precision levelling of heavy industrial machinery
• 3 machined wedges are mounted and held together by a horizontal adjusting bolt
• A lock screw secures the mount in the levelled position
• A special opening allows for bolting of the machine to the floor Note: Max. levelling is 1/4" (6 mm). If more height is required use a shim plate.

Specifications

• Overall Width: 3.93"
• Overall Length: 5-9/10"

Additional Specifications

• A mm: 150
• B mm: 100
• H mm: 40+/-5
• Max. Load lbs.: 15000
• 15000
