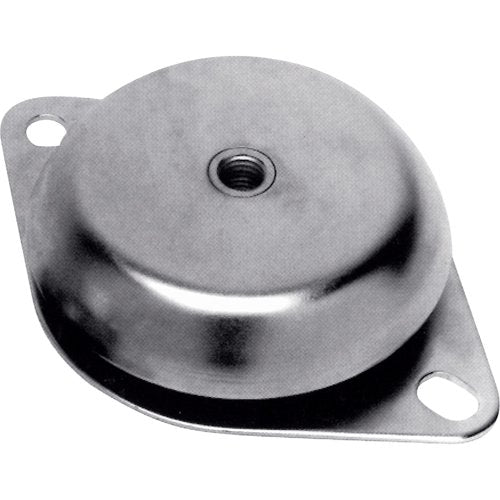

UD187-Anti-Vibration Cupmounts

• High vibration dampening characteristics
• Fail-safe, rugged interlocking metal and neoprene construction provides exceptional performance against shear and compression forces and flexible vertically and stable horizontally
• Metal cupmount component is cold-rolled steel coupled with an elastomer-in-compression design
• High-grade neoprene elastomer provides resistance to oil and ozone
• Each side flange has through holes allowing for effective attachment to supporting equipment structure

Specifications

• Overall Length: 7-11/16"
• Overall Height: 1-11/16"

Additional Specifications

• Maximum load in lbs. Non-Impact Machinery: 1400
• Maximum load in lbs. Impact Machinery: 900
• Mount dimensions in inches A: 7.6875
• Mount dimensions in inches B: 4
• Mount dimensions in inches C: 4
• Mount dimensions in inches D: 5.1875
• Mount dimensions in inches H: 1.6875
• Mount dimensions in inches T: 40671
