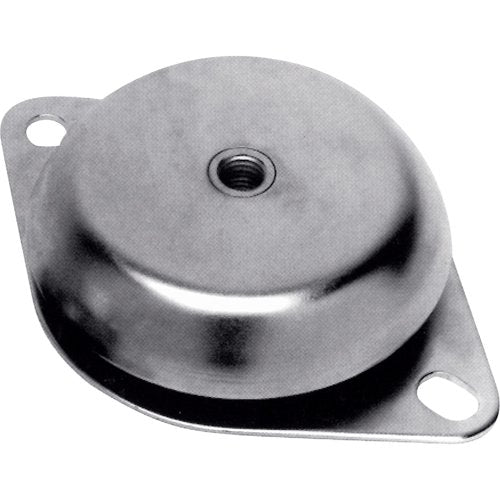

UD186-Anti-Vibration Cupmounts

• High vibration dampening characteristics
• Fail-safe, rugged interlocking metal and neoprene construction provides exceptional performance against shear and compression forces and flexible vertically and stable horizontally
• Metal cupmount component is cold-rolled steel coupled with an elastomer-in-compression design
• High-grade neoprene elastomer provides resistance to oil and ozone
• Each side flange has through holes allowing for effective attachment to supporting equipment structure

Specifications

• Overall Width: 6"
• Overall Length: 6"
• Overall Height: 1-3/8"

Additional Specifications

• Maximum load in lbs. Non-Impact Machinery: 700
• Maximum load in lbs. Impact Machinery: 450
• Mount dimensions in inches A: 6
• Mount dimensions in inches B: 2.75
• Mount dimensions in inches C: 2.75
• Mount dimensions in inches D: 3.625
• Mount dimensions in inches H: 1.375
• Mount dimensions in inches T: 41276
