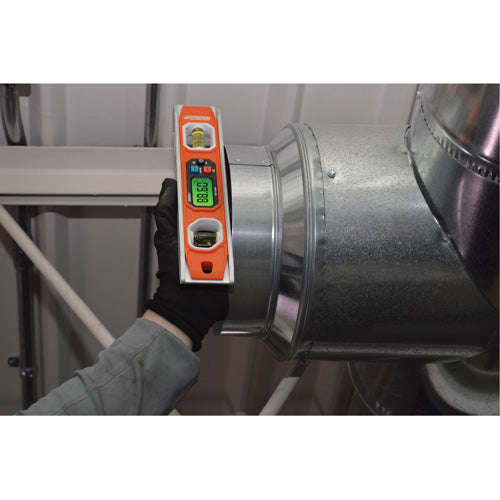

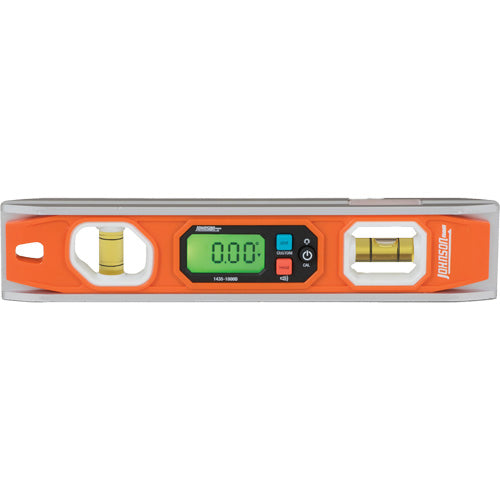

UBA572 - Programmable Digital Torpedo Level

Description

• Backlit LCD display for easy viewing
• LCD display automatically inverts when the level is in the inverted position
• Custom modes
• Sub display for showing target setpoint
• Preprogrammed 22.5° and 45° modes simplify miter cuts, conduit bends and more
• Simple three-button operation
• Strong rare earth magnets and V-groove top-edge
• Oversized 1/2" vials for maximum durability and readability
• Units of measure in degrees, percent, in/ft (decimal and fraction), mm/m
• IP65 construction provides complete protection against dust and is water resistant
• Battery not included

Additional Specifications

• Manufacturer's Warranty: Limited Lifetime
• Accuracy: ±0.1° at 0°/90°, 0.20° (other angles)
• Battery Type: (1) CR2032 Lithium Battery
• Battery Life: 16 hrs.
• Working Temperature: 14°F - 122°F
• Dimensions: 10" x 2" x 0.75"
• Weight: 0.495 lbs.
• Working Range: 0° to 90°
• Resolution: 0.05° or 0.08%, 0.01 in/ft, 1/8 in/ft, 1mm/m
