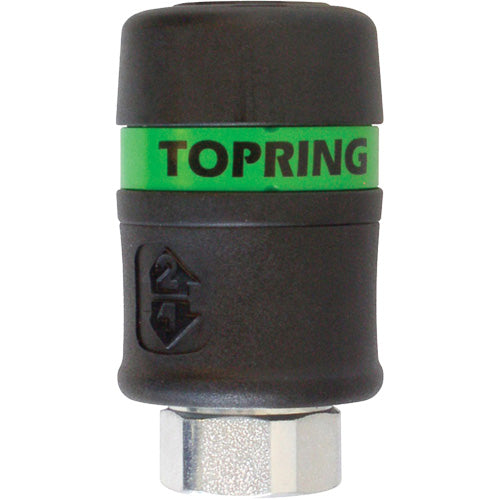

UBA297 - TOPQUIK Ultraflo 7.8 mm Quick Coupler

UBA297 - TOPQUIK Ultraflo 7.8 mm Quick Coupler

by Topring
SKU: UBA297
$47.82 - $47.82
$47.82
$47.82 - $47.82
$47.82

Description

  • The green ring on this model indicates compatibility with Euro (Ultraflo) profile plugs
  • This automatic coupling releases downstream pressure automatically, allowing safe zero-pressure disconnection
  • It is designed to withstand impacts and the toughest working conditions, ensuring exceptional durability
  • The composite sleeve protects delicate surfaces from scratches, while the silicone-free body eliminates the risk of compressed air contamination, especially in painting or finishing applications
  • Lightweight, ergonomic, leak-proof, and reliable, it also provides superior user comfort with a reduced noise level of only 80 dB during disconnection

Additional Specifications

  • Rotation Capacity: Continuous
  • Max. Angle of Rotation: 360°
  • Nominal Airflow Rate: 59 SCFM
  • Fluid Temperature: -15°C to 70°C
  • Inlet Connection Type: Threaded
  • Outlet Connection Type: Automatic, Ultraflo
  • Disconnect Mode: Zero Pressure
  • Colour: Black, Green
  • Seal Material: Nitrile/NBR
