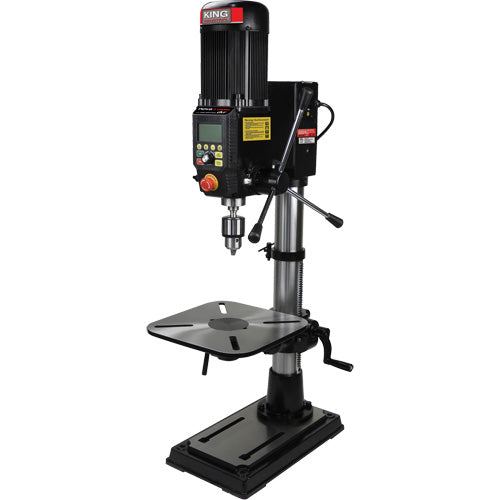

UAY526-Benchtop DVR Drill Press

• Smart drill press combines common drill press features with state of the art technology
• Powerful direct drive 1 HP high torque motor with no pulleys or belts to cause vibration
• Digital Variable Reluctance (DVR) Direct Drive Technology with Adaptive Control™ Software which works for you to produce optimum results in wood, metal, plastic and glass
• Constant torque under load, depth and vibration sensors and emergency stop
• Intelligent speed selection and dial knob for precise speed adjustments
• Automatic electronic depth stop quickly and accurately stops to the precise programmed depth
• Electronic braking and forward/reverse
• Convenient LED light and twin laser guide system
• Comes with 5/8” drill chuck & key, firmware USB cable, knock-out wedge, adjustment wrench and hex keys

Specifications

• Swing: 16"
• Chuck Size: 5/8"
• No Load Speed: 3000 RPM
• Overall Width: 20"
• Overall Length: 12-5/8"
• Overall Height: 44-3/4"

Additional Specifications

• Max. Distance Chuck to Table: 12-5/8”
• Max. Distance Chuck to Base: 22-5/8”
• Stroke: 4-1/2”
• Spindle Taper: MT #2
• Quill Diameter: MT #2
• Motor: 1 HP/CV, 15 A
• Voltage: 120V, 60 Hz, 1 phase
