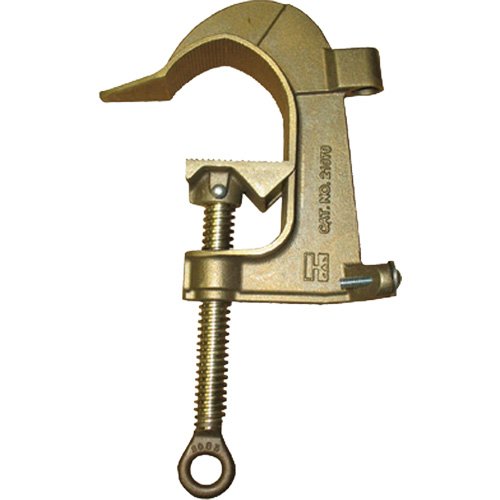

UAI511-Bronze C-Head Ground Clamp

• Serrated jaw
• 5H rated

Specifications

• Clamping Capacity: 2-7/8" (73 mm)

Additional Specifications

• Main Line Range (Max.): 2.88" Outside Diameter Cable or Bus
• Main Line Range (Min.): 6 Solid, 0.16" Diameter
• Max. Size Cable: 4/0
• Max. Fault Current Rating: 43 kA @ 15 Cycles, 30 kA @ 30 Cycles
• Terminal Type: 43 kA @ 15 Cycles, 30 kA @ 30 Cycles
• Weight: 3.3 lbs.
