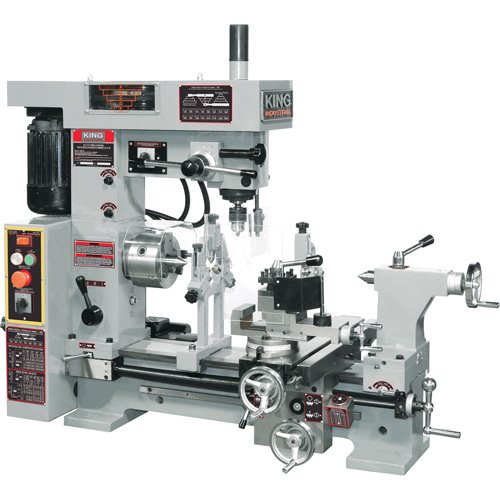

UAD695-Combo Lathe/Milling Machine

• Two powerful 3/4 HP, 110V motors
• Lathe chuck and drill chuck safety guards with limit switch protection
• Standard tool post safety guard
• Easily change from Lathe mode to Mill mode
• Forward/reverse switch for both operating modes
• Bedways are hardened and precision-ground

Specifications

• Distance Between Centers: 20"
• Swing Over Bed: 16-1/2"
• Swing Over Gap: 12"
• Spindle Bore: 1-1/8"
• Overall Width: 19-1/2"
• Overall Length: 43"
• Overall Height: 38"

Additional Specifications

• Headstock/tailstock tapers: MT#4/MT#3
• Cross slide travel: 8"
• Lathe spindle speeds: 7 (160-1,360 RPM)
• Thread cutting range: 36 (4-120 TPI) 22 (0.2-6mm)
• Automatic feeding range: 36 (4-120 TPI) 22 (0.2-6mm)
• Drilling speeds: 16 (120-3,000 RPM)
• Drilling/Face mill/End mill capacities: 7/8" / 1-1/8" / 3-1/8"
• Includes: 5"- 3 Jaw Chuck; Imperial & Metric Change Gears; Tool Post; Steady Rest; Follow Rest; Thread Chasing Dial Indicator; MT#3 & MT#4 Dead Centres; 1/2" Drill Chuck & Tool Box with Adjusting Tools
