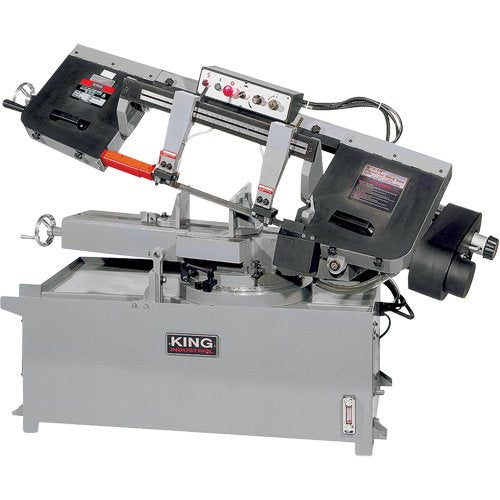

TZ974-Metal Cutting Swivel Bandsaw

• Powerful 2 HP motor
• Carbide ball bearing blade guides with rollers
• Centralized control panel and automatic shut-off
• Adjustable hydraulic downfeed control
• Precision blade tension adjustment
• Head swivels 0° to 45° in one direction
• Quick-positioning vise with fully adjustable jaws for 0° to 45° angles
• Coolant system included

Specifications

• Cutting Capacity at 90°: 9" x 18" Rectangular
• Cutting Capacity at 45°: 9" x 11" Rectangular
• No. of Speeds: 3
• Overall Width: 32"
• Overall Length: 73"
• Overall Height: 42"
• Style: Horizontal

Additional Specifications

• Variable Speeds: 80 - 250 FPM
• Blade Dimensions: 131-3/4" x 1" x 0.032"
• Motor Amperage: 2.5 A
• Voltage: 600 V
• Table Height from Floor: 600 V
