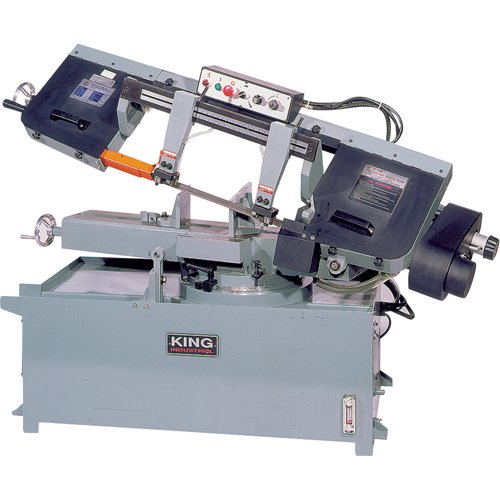

TZ538-Metal Cutting Swivel Band Saws

• Carbide ball bearing blade guides with rollers
• Centralized control panel and automatic shut-off
• Adjustable hydraulic downfeed control
• Precision blade tension adjustment
• Quick-positioning vise with fully adjustable jaws for 0° to 45° angles
• Includes: Coolant system

Specifications

• Cutting Capacity at 90°: Round 9" and 9" x 18" Rectangular
• Cutting Capacity at 45°: Round 9" and 9" x 11" Rectangular
• Overall Width: 32"
• Overall Length: 73"
• Overall Height: 42"
• Style: Horizontal

Additional Specifications

• Speeds: (80-250 FPM) variable
• Blade: 131 3/4" x 1" x 0.032"
• Motor: 2 HP, 15 A, 1 phase, 60 Hz
• Voltage: 220 V
• Weight: 220 V
