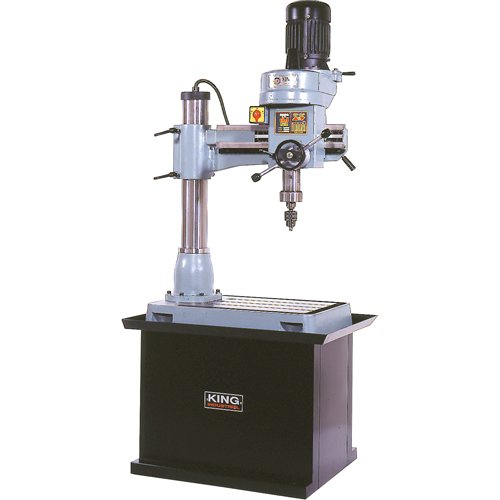

TZ529-Radial Drilling Machine

• Spindle is equipped withheavy-duty tapered bearings
• Head swivels 180¦ and iseasily raised and lowered
• Head travels up to 14"
• Includes: Forward reverse switch,1/2" chuck with key and stand ; ; Model No. TZ529; Mfg. No. KC-35; Chuck size: 1/2"; Speeds: 5 (340-3000 RPM); Table size: 21 5/8" x 19 5/8"; Spindle Taper: #3 Morse; Motor: 1.5 HP, 11 A, ; single phase, 60 Hz; Voltage: 220 V; Dimensions: 24" L x 34" W x 90" H; Weight: 638 lbs.

Specifications

• Chuck Size: 1/2"
• Speeds: 5
• Table Dimensions: 21-5/8" W X 19-5/8" L
• Spindle Taper: #3 Morse

Additional Specifications

• Size: 24"L X 34"W X 90"H
• Speed: (340-3000 RPM)
