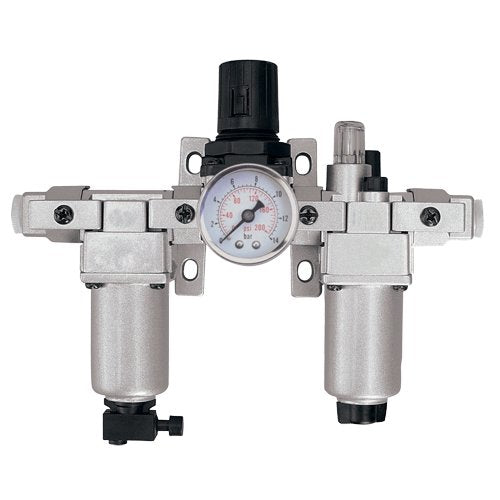

TYY184-Modular Filter, Regulator & Lubricator (Gauge Included)

• Assembly of all three individual components
• Components are attached in series using spacers and piping adapters, which make the individual components easily removable and mountable without disturbing the pipe line
• Comes complete with wall mounting bracket
• Regulators are used to maintain a steady outlet pressure, unaffected by variations or fluctuations in the inlet pressure
• Filter used to separate dust, dirt, moisture and other contaminants from compressed air
• Filter features press-type manual drain with nighttime drain feature, which automatically drains off the bowl once the compressed air supply to the filter is switched off
• Filter has sintered bronze, 40-micron filtering element
• Lubricator used to feed lubricants to pneumatic equipment and maintain a constant oil-to-air density over a wide range of flow
• Fog/Micro Mist type lubricator, up to 50' pipe runs
• Air filter, regulator and lubricator come with NPT threads and gauge

Specifications

• Connection Size: 3/4" NPT
• Max. Air Flow: 123 SCFM @ 105 PSI
• Operating Pressure: 7-145 PSI
• Bowl Material: Metal
• Bowl Capacity: 6.8 fl. oz.

Additional Specifications

• Filter Bowl Capacity: 5.60 oz.
• Lubricator Bowl Capacity: 6.80 oz.
• Series: FRL400
• Manufacturer's Warranty: 1 Year Limited
• 1 Year Limited
