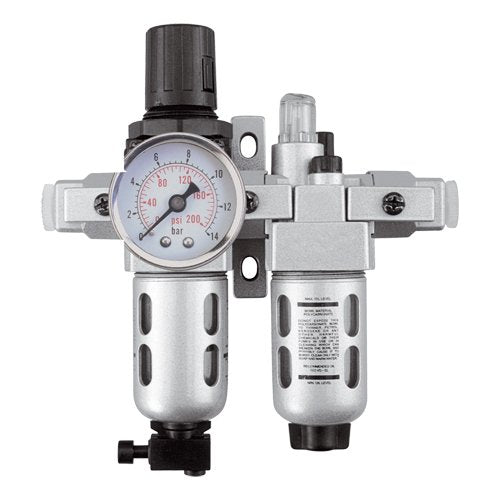

TYY178-Modular Filter/Regulator & Lubricator (Gauge Included)

• Space-saving, two-piece combination is a popular air preparation unit
• Attached in series using spacers and piping adapters, which make the two components easily removable and mountable without disturbing the pipe line
• Come complete with a wall mounting bracket
• Regulators are used to maintain a steady outlet pressure, unaffected by variations or fluctuations in the inlet pressure
• Filter used to separate dust, dirt, moisture and other contaminants from compressed air
• Filter features press-type manual drain with nighttime drain feature, which automatically drains off the bowl once the compressed air supply to the filter is switched off
• Lubricator used to feed lubricants to pneumatic equipment and maintain a constant oil-to-air density over a wide range of flow
• Fog/Micro Mist type lubricator, up to 50' pipe runs

Specifications

• Connection Size: 1/4" NPT
• Max. Air Flow: 18 SCFM @ 105 PSI
• Operating Pressure: 7-145 PSI
• Bowl Material: Polycarbonate
• Bowl Capacity: 0.68 fl. oz.

Additional Specifications

• Filter Bowl Capacity: 0.30 oz.
• Lubricator Bowl Capacity: 0.68 oz.
• Series: FRL100
• Manufacturer's Warranty: 1 Year Limited
• 1 Year Limited
