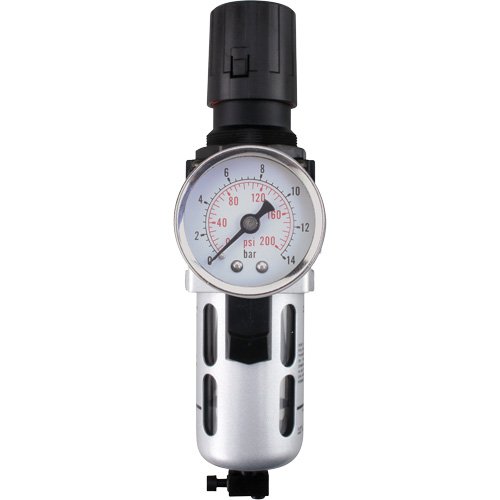

TYY177-Modular Air Filter/Regulator (Gauge Included)

• Filter-Regulator combination is the most popular air preparation units, assembled together to form a single unit
• Regulators are used to maintain a steady outlet pressure, unaffected by variations or fluctuations in the inlet pressure
• Filter used to separate dust, dirt, moisture and other contaminants from compressed air
• Press-type manual drain with nighttime drain feature, which automatically drains off the bowl once the compressed air supply to the filter is switched off
• Filter has sintered bronze, 40-micron filtering element
• Comes with NPT threads and gauge

Specifications

• Connection Size: 1/2" NPT
• Max. Air Flow: 106 SCFM @ 105 PSI
• Max. PSI: 145 PSI
• Bowl Material: Polycarbonate
• Bowl Capacity: 1.5 fl. Oz.

Additional Specifications

• Series: FRL300
• Manufacturer's Warranty: 1 Year Limited
