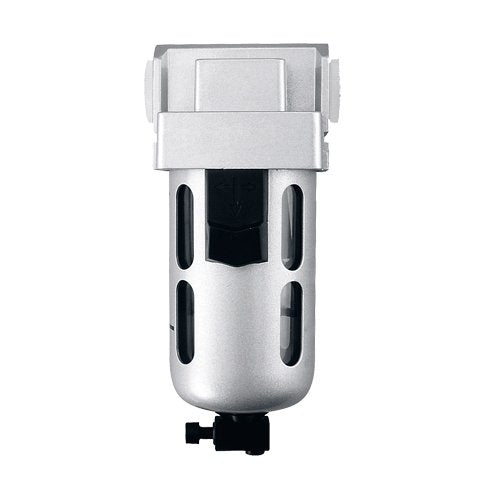

TYY165-Air Filter

• Used to separate dust, dirt, moisture and other contaminants from compressed air
• Sintered bronze, 40-micron filtering element
• Designed with a separator and shield for efficient moisture separation
• Press-type manual drain with nighttime drain feature, which automatically drains off the bowl once the compressed air supply to the filter is switched off
• Comes with NPT threads

Specifications

• Connection Size: 1/4" NPT
• Max. PSI: 145 PSI
• Drain Type: Semi-Automatic
• Type: Modular
• Material Filtered: Combination
• Filtration Size (Microns): 40

Additional Specifications

• Series: FRL100
• Manufacturer's Warranty: 1 Year Limited
