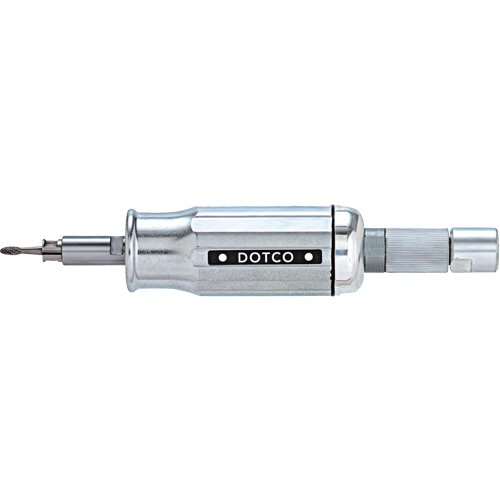

TYL572-10-90 Series Precision Turbine Grinder

• Requires no air line lubrication - High precision ball bearings for long life expectancy
• Two-stage turbine motor with roll throttle
• Achieves a superb finish with its high speed and precision spindle
• Light weight and durable aluminum housing
• Low vibration and quiet operation minimizes operator fatigue
• CAUTION: Use dry air at 90 psi maximum: Do not lubricate turbine grinders. Lubrication will be detrimental to the operation and life of turbine tools

Specifications

• Air Consumption: 6 CFM
• Air Inlet: 1/8"
• Sound Level (dBA): 75
• Collet Size: 1/8"
• No Load RPM: 100,000

Additional Specifications

• Tool Weight: 0.5 lbs.
• Tool Length: 5.4"
• Motor Power: 0.06 hp. (0.044 kW)
