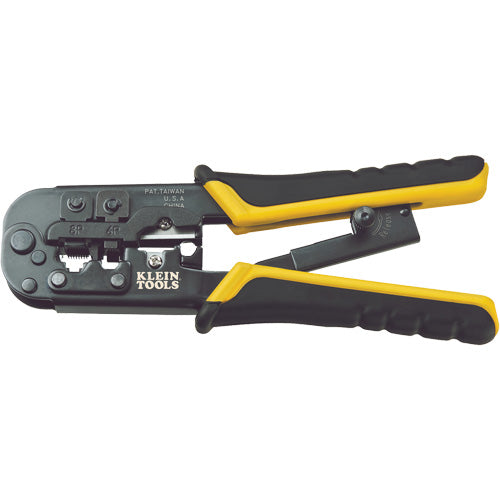

TVB626 - Ratcheting Modular Crimper/Stripper

Description

• Fast, reliable modular-crimp connector installation for voice and data applications
• All-In-One Tool, cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cable)
• Crimps 4, 6, and 8 position modular connectors (RJ22, RJ11/RJ12, and RJ45 Cat5e/Cat6)
• Optimized for standard modular plugs and proper cable preparation and full insertion of conductors are required for best results
• Crimping dies are precision ground from high-carbon steel
• Designed for Western Electric (WE)/Stewart Stamping (SS)-type standard modular connectors (not compatible with pass-thru connectors or Cat7/Cat8 plugs)
• Ratchet safety-release and a blade-guard on cutting and stripping knives reduce risk of injury
• Full-cycle ratchet mechanism prevents the release of the connector prior to full compression
• Yellow and black grips enhance comfort, visibility, and allow quick identification
• Three crimping dies (8-position, 6-position and 4-position)
• Cable parameters: 28-22 AWG (0.08 - 0.34 mm²) flat or round; solid or stranded telephone and data
• Not for use with AMP® connectors
• AMP® is a registered trademark of TYCO, Inc
• Replacement blade set available (Cat. No. VDV999-064)

Additional Specifications

• Material: Steel
• Finish: Black Oxide
• Handle Colour: Yellow, Black
• Cable Type: CAT3, CAT5e, CAT6/6A
• Connector Type: RJ45, RJ11, RJ12 Standard
• Application: Round STP/UTP, Flat Satin Phone Cable 22 - 28 AWG (0.08 - 0.34 mm²)
• Weight: 11.3 oz. (320 g)
