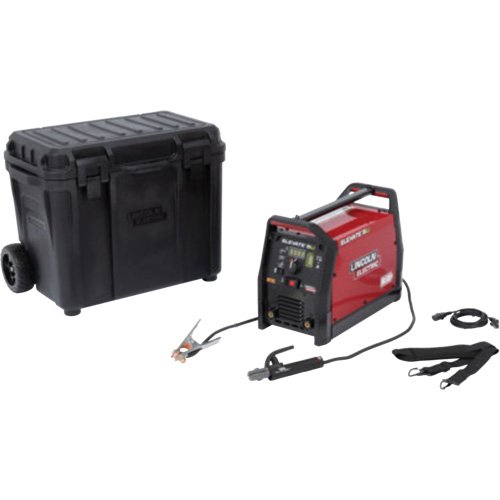

TTV842 - Elevate™ SLi Battery Powered Welder with Rolling Case Package

SKU: TTV842
Original price $7,930.68 - Original price $7,930.68
Original price
$7,930.68
$7,930.68 - $7,930.68
Current price $7,930.68

Specifications:

  • Voltage Input Power: 120 V
  • Phase Input Power: 1 Ph
  • Hertz Input Power: 60 Hz

Description

  • Provides a powerful 145A output for highly efficient welding
  • Ensures easy starts, a smooth arc, low spatter, and optimal bead appearance
  • Supports a wide range of welding rods, including 6010 and 7018 up to 5/32 in, and features Touch Start TIG functionality
  • Hot Start and Arc Force can be adjusted to improve electrode starting and control penetration profile
  • Designed for easy transportation, weighing only 33 lbs. and featuring an adjustable shoulder strap for added convenience
  • Easily maneuverable on job sites and does not require extra-long weld cables or a generator, making it an excellent option for remote work locations
  • Employs Lithium Iron Phosphate technology to offer extended battery life, enabling the welding of up to 21 sticks on a single charge
  • The integrated internal charging system can charge in 60 minutes using 120V input power, eliminating the need for an external charger
  • Built to withstand challenging welding environments with an IP23S rating and fan as-needed circuitry, ensuring long-lasting performance
  • Backed by a 3-year warranty from Lincoln Electric, providing peace of mind and reliable support for your investment
  • Includes: Elevate™ SLi Battery Powered Welder; 200 Amp Industrial Electrode Holder with Cable 12.5 ft (3.8 m) & Twist Mate™ (Dinse 10-25) Connector (K5612-1); Work Lead 12.5 ft (3.8 m) with Ground Clamp & Twist Mate™ (Dinse 10-25) Connector (K5482-1); Adjustable Shoulder Strap (KP5656-1); 120V Input Cord 7.5 ft (2m) (KP5655-1); Elevate™ SLi Battery Powered Welder Rolling Machine Case (K5548-1)
  • Dimensions: 14" H x 9.1" W x 18.3" D (356 mm x 231 mm x 465 mm)
  • Weight: 33 lbs. (15 kg)
  • Machines Processes: Stick (SMAW), TIG (GTAW)
  • Open Circuit Voltage: Average: 55V, Peak: 72V
  • Output Range: Stick: 10-145A, TIG: 4-145A
  • Polarity: DC
  • Battery Type: Lithium Iron Phosphate (LiFePO4) Battery
  • Charge Time: 60 minutes
