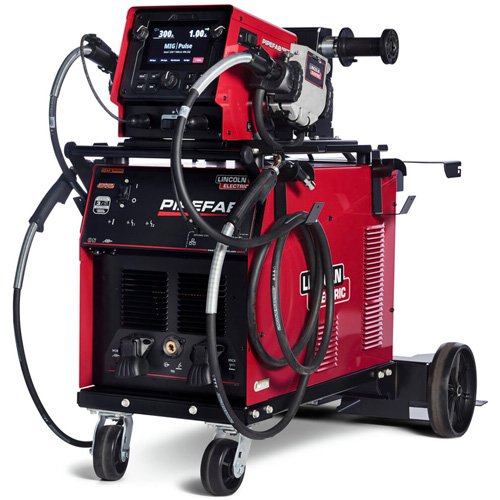

TTV783-PIPEFAB™ READY-PAK® Welding System

• Powered by proprietary Cable View™ Technology the PIPEFAB™ system continually monitors cable inductance and adjusts the waveform to maintain consistent arc performance with long or coiled cable runs
• Breakthrough Arc Performance provides high quality results from root, to cap, to final fit
• Features Digital Navigation for unmatched simplicity in setting parameters
• Engineered to give the Pipe and Vessel industries the ideal configuration and capabilities for their welding needs
• Supported by the 125+ years of renowned technical expertise

Specifications

• Voltage Input Power: 230 V/208 V/380 V/415 V/460 V/575 V/200 V/220 V/400 V
• Phase Input Power: 3 Ph
• Hertz Input Power: 50/60 Hz

Additional Specifications

• Includes: PIPEFAB™ Cable Bracket Kit (KP4867-1), PIPEFAB™ Power Source (K3731-1), PIPEFAB™ Dual Bottle Undercarriage (K3736-1), PIPEFAB™ Feeder & 300C Screen Protector (KP4735-1), Drive Roll Kit .035, .045 (0.9, 1.2 mm) Solid Wire (KP1505-1), PIPEFAB™ Feeder (K3735-1), Work Lead - Lug & GC500 Ground Clamp (2/0, 350A, 60%) - 15 ft (15.3 m) (K2150-1), Magnum® PRO Curve™ HDE™ 350 Welding Guns (K4532-2-10-45), Magnum® PRO Curve™ HDE™ 250 Welding Guns (K4531-2-10-45), Magnum® PRO Nozzle - 350A, Thread-on, Flush, 1/2 in (12.7 mm) ID - 25/pack (KP2742-1-50F-B25), Copper Plus® Contact Tip - 350A, Tapered, .045 in (1.2 mm) - 10/pack (KP2744-045T), Copper Plus® Contact Tip - 350A, Tapered, .035 in (0.9 mm) - 10/pack (KP2744-035T), Magnum® PRO Nozzle - 350A, Thread-on, Flush, 3/8 in (9.5 mm) ID - 25/pack (KP2742-1-38F-B25), Model 355-2Ar-58010 Flowmeter Regulator Shielding Gas Kit (3100211)
• Manufacturer's Warranty: 5 Years
• Weight: 340 lbs.
• For Use With: Piping, Pressure Vessels, Process Piping
• Piping, Pressure Vessels, Process Piping
