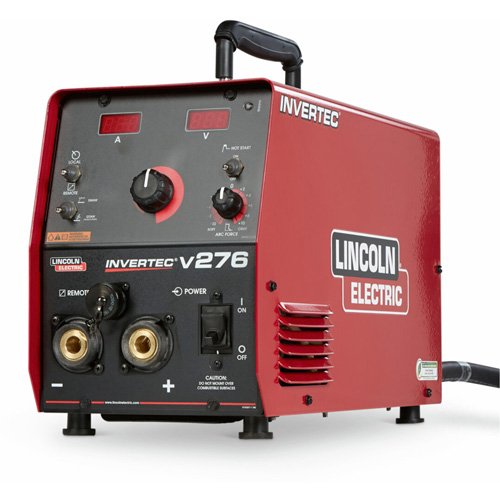

TTV758-Invertec® V276 Stick & TIG Power Source

• Ideal for outdoor construction applications
• This small package delivers outstanding performance on a wide range of electrode types and sizes
• Built rugged enough to handle the toughest construction sites
• Outstanding AWS E6010 and E7018 performance - using up to 7/32 in. (5.5 mm) diameter electrode that enables both whip and drag techniques
• Touch Start TIG® allows the welding arc to be established without high frequency starting
• Air carbon arc cutting and gouging - with up to 3/16 in. (4.8 mm) diameter carbon electrode
• Selectable Hot Start Turn it on for an extra boost of output to help you fire off and prevent sticking to the work piece

Specifications

• Voltage Input Power: 230 V/208 V/380 V/415 V/460 V/575 V
• Phase Input Power: 1 Ph/3 Ph
• Hertz Input Power: 50/60 Hz

Additional Specifications

• Includes: Invertec V276 Power Source, 10 ft. Input Power Cable
• Dimensions (H x W x D): 13.6" x 9" x 20.25" (345 mm x 229 mm x 514 mm)
• Weight: 54 lbs. (24.49 kg)
• Work Lead Connector Type: Tweco
• Output Range: Tweco
• Rated Output: 275A/31V/35%, 250A/30V/60%, 200A/28V/100%
• For Use With: Construction, Construction & Field Erection, Maintenance & Repair, Repair Welding, Structural Fabrication, Structural Welding
• Manufacturer's Warranty: 3 Years Standard
