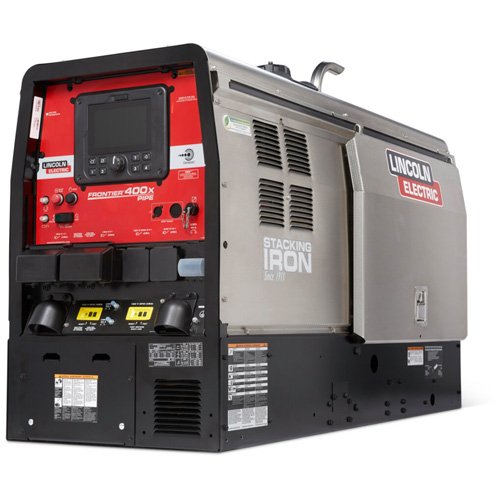

TTV753-Frontier® 400X Pipe Advanced Engine-Driven Welder/Generator

• Offers up to 400 amps (IEC rated at 325 amps) of welding current to tackle numerous welding and carbon arc gouging applications
• Features optimized CC and CV modes, specialized modes to support mechanized and pulse welding, and a dedicated Pipe mode with DigFX™ technology to produce the iconic, smooth DC-style arc for downhill pipe welding
• Provides up to 11 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders
• Bright, durable 7 in. digital user interface for unmatched machine control
• Save and recall memories, receive maintenance reminders, and enable PIN authorization
• Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter
• Built-in True Voltage Technology™ (TVT) compensates for voltage drop to further improve operations
• Weld longer with a class-leading 20 US gal. (75.7 L) fuel tank and integrated Auto-Stop/Start feature, designed to prevent excessive idling to help save on fuel costs, avoid unnecessary engine wear, and extend time between required maintenance
• Powered by a 24.7 hp, turbocharged Perkins® diesel engine to provide extremely smooth and quiet operation with excellent cold-weather starting and high altitude performance while meeting EPA Tier 4 Final compliance
• Engineered tough to withstand harsh conditions and backed by trusted industry support and 3-year warranty

Specifications

• Phase Input Power: 1 Ph/3 Ph
• Hertz Input Power: 60 Hz

Additional Specifications

• Dimensions (H x W x D): 35.9" x 25.3" x 60" (913 mm x 643 mm x 1524 mm)
• Weight: 1035 lbs. (469 kg)
• IEC Rating: 325A / 33V / 100% @ 104°F (40°C)
• Max. Rating: 400A / 26V / 60% @ 104°F (40°C)
• Output Range by Mode: 400A / 26V / 60% @ 104°F (40°C)
• Open Circuit Voltage: 71 Peak OCV at 1800 RPM
• Rated Gouging Carbon Diameter: 5/16" (8 mm)
• Communication Technology: CrossLinc
• Engine Horsepower: 24.7 hp (18.4 kW)
