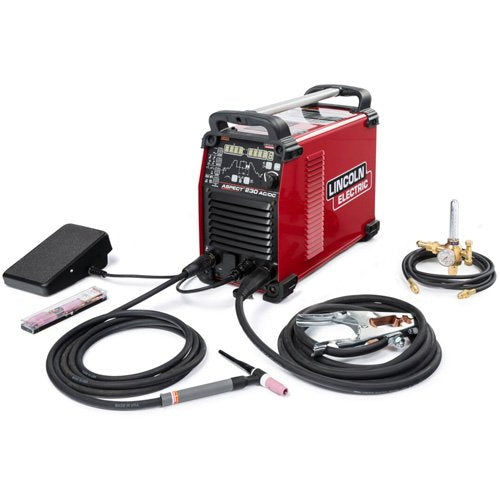

TTV735-Aspect® 230 AC/DC Air-Cooled One-Pak®

• The Aspect 230 TIG welder is an inverter based arc welding power source optimized for AC/DC TIG and Stick welding
• A true professional's choice with advanced waveforms, full sequencer, and pulse controls, this machine will deliver the arc you need
• All of the features You want can be easily customized to Your application and saved in the available memory settings
• With up to 230 Amps of maximum output you can TIG weld up to 1/4
• Portable, lightweight, and easy to transport
• Save critical weld set up information in up to -9- memory locations
• Exceptional arc response and stability
• PowerConnect® technology 120-460V input power

Specifications

• Voltage Input Power: 120 V
• Phase Input Power: 1 Ph/3 Ph
• Hertz Input Power: 50/60 Hz

Additional Specifications

• Includes: (1) Aspect 230 AC/DC TIG Welder, (1) Input Power Cord 10 ft (3m), (1) K870 Foot Pedal, (1) KP509 Expendables Kit for PTW-18 & PTA-26, (1) K1783-10 Air Cooled TIG Torch 200A PTA-26 Flex Head (25ft), (1) 3100211 Gas Regulator, (1) K1803-3 Ground Clamp with 15 ft Cable, (1) K1622-3 Torch Twist Mate Connector ASM
• Dimensions (H x W x D): 16.5" x 9.7" x 19.9" (419 mm x 246 mm x 506 mm)
• Input Voltage: 120-460 V
• Output Range: 120V: 2-150A TIG 208/230/460V: 2-230A
• Polarity: 120V: 2-150A TIG 208/230/460V: 2-230A
• Rated Output: 120V: 110A/100%/14.4V, 125A/60%/15V, 150A/35%/16V 208/230/460: 160A/100%/16.4V, 190A/60%/17.6V, 230A/35%/19.2V
• Manufacturer's Warranty: 3 Years
