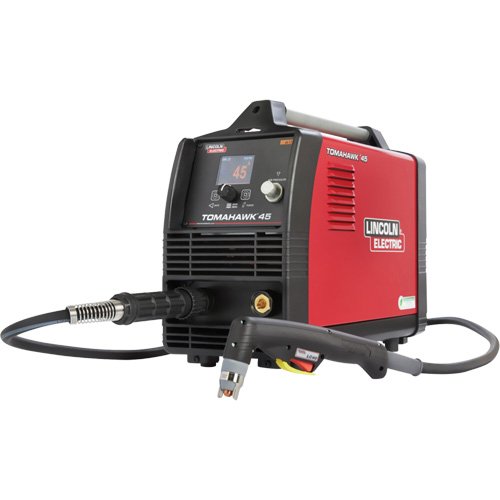

TTV732-Tomahawk® 45 Plasma Cutter with 20' Hand Torch

• Portable for plasma cutting and gouging on a wide variety of materials including mild steel, stainless steel, aluminum, brass, and copper
• Lightweight and Portable – Easily carried by one person
• Continuous Output Control – Focus the arc for different material thickness
• Touch Start System – Reliable plasma arc initiation without high frequency
• Rapid Arc Restrike – Fast cutting through gaps, even expanded metal
• Cool Operation, Long Consumable Life - Enhanced swirling airflow keeps the electrode and tip cool and increases the life of consumables
• Added Safety – The Parts-in-Place system detects correct installation of consumables and torch
• Engine Drive Compatible – Select a Lincoln Electric recommended engine driven welder / generator to power your Tomahawk in remote locations

Specifications

• Voltage Input Power: 230 V
• Phase Input Power: 1 Ph
• Hertz Input Power: 60 Hz

Additional Specifications

• Includes: (1) Tomahawk 45 Plasma Cutter; (1) K2847-1 LC40 Hand Torch 20 ft Cable; (3) KP2843-1 Electrode; (3) KP2843-2 Nozzle 40A; (2) KP2842-4 Swirl Ring; (1) KP2843-5 Retaining Cap (Standard); (1) KP2843-2 Drag Spacer; (1) Air Regulator and Pressure Gauge; (1) Internal Water Separator; (1) Work Clamp and Cable; (1) Shoulder Strap; (1) Input Power Cord
• Rated Output #1A (Current/Voltage/Duty Cycle): 30A/92V/100%
• Rated Output #1B (Current/Voltage/Duty Cycle): 40A/96V/60%
• Rated Output #1C (Current/Voltage/Duty Cycle): 45A/98V/45%
• Input Current at Max Rated Ouput #1: 45A/98V/45%
• Machines Processes: Plasma Cutting & Plasma Gouging
• Max Rating: 45A
• Gas Supply: Air or Nitrogen
• Gas Pressure Required: 80 - 110 PSI (6 -7.5 Bar)
