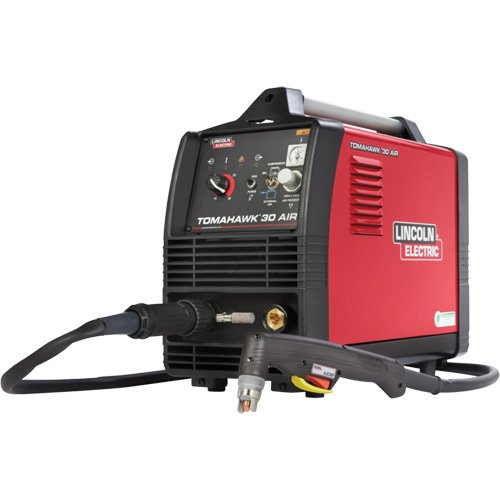

TTV731-Tomahawk® 30 AIR Plasma Cutter with 10' Hand Torch & Built-In Compressor

• Cuts mild and stainless steel precisely, and can be used with either external or internal compressor
• Ultimate Portability – Internal air compressor enables operation in environments where external compressed air is not available
• Continuous Output Control – Focus the arc for different material thickness
• Touch Start System – Reliable plasma arc initiation without high frequency
• Rapid Arc Restrike – Fast cutting through gaps, even expanded metal
• Front Panel Purge Control – Makes it easy to set the airflow rate without initiating the plasma arc
• Cool Operation, Long Consumable Life - Enhanced swirling airflow keeps the electrode and tip cool and increases the life of consumables
• Added Safety – The Parts-in-Place system detects correct installation of consumables and torch
• Engine Drive Compatible – Select a Lincoln Electric recommended engine driven welder / generator to power your Tomahawk in remote locations

Specifications

• Voltage Input Power: 230 V
• Phase Input Power: 1 Ph
• Hertz Input Power: 60 Hz

Additional Specifications

• Includes: (1) Tomahawk 30 AIR Plasma Cutter; (1) Internal Air Compressor (External Air Connection also Standard); (1) K5537-1 LC30 Hand Torch and 10 ft (3 m) Cable; (3) KP2842-1 Electrode; (3) KP2842-6 Nozzle 30A; (2) KP2842-4 Swirl Ring; (1) KP2842-3 Retaining Cap (Internal Air-2 Holes); (1) KP2842-5 Drag Spacer; (1) KP2842-7 Retaining Cap (Internal Air- 6 Holes); (1) Air Regulator and Pressure Gauge; (1) Internal Water Separator; (1) Work Clamp and Cable; (1) Shoulder Strap; (1) Input Power Cord
• Rated Output #1A (Current/Voltage/Duty Cycle): 25A/90V/100%
• Rated Output #1B (Current/Voltage/Duty Cycle): 30A/92V/60%
• Input Current at Max Rated Ouput #1: 16A
• Machines Processes: 16A
• Max Rating: 30A
• Gas Supply: Air or Nitrogen
• Gas Pressure Required: 80 - 110 PSI (6 -7.5 Bar)
• Output Range: 15-30A
