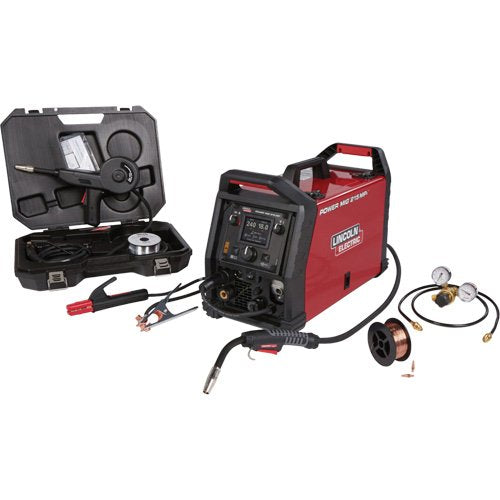

TTV729-POWER MIG® 215 MPi™ Multi-Process Welder Aluminum One-Pak®

• Portable welder for MIG, stick, TIG, and flux-cored welding
• Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply
• Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop
• Built in TIG Solenoid and Foot Pedal Adapter - The POWER MIG 215 MPi welder is designed to accept a TIG torch, no install required
• Robust and Reliable Wire Drive - Ensures proper and consistent feeding for optimal welding experience
• Ready.Set.Weld® Technology - Simplifies setup by recommending optimal welding parameters for each welding procedure
• ArcFX® Technology - Provides instant visual feedback on how settings affect the weld outcome
• Memory Capability - Easily recall saved settings to get welding faster
• Lightweight and Portable - Only 48 lbs.

Specifications

• Voltage Input Power: 120 V/230 V
• Phase Input Power: 1 Ph
• Hertz Input Power: 60 Hz

Additional Specifications

• Includes: (1) POWER MIG 215 MPi Multi-Process Welder; (1) K4076-1 Magnum® PRO 175L Gun 10 ft. (3.0 m); (1) K3269-1 Magnum PRO 100SG Spool Gun; (1) 230V to 120V Power Cord Adapter; (1) Work Cable and Clamp; (1) Electrode Holder and Lead Assembly; (1) Adjustable Gas Regulator and Hose; (1) Gasless Nozzle; (1) Gun Cable Liner (pre-installed"gun); (1) Spindle Adapter; (1) ED030631 Sample 2 lb (0.91 kg) Spool of SuperArc® L-56® MIG Wire; (2) Contact Tips 0.025"(0.6 mm); (2) Contact TIps 0.035"(0.9 mm); (1) Drive Rolls 0.025-0.030"(0.6-0.8 mm) and 0.035"(0.9 mm) (Installed); (1) Knurled Drive Roll 0.030-0.045"(0.8-1.1 mm); (1) Wire Guide 0.045"(1.1 mm) and 0.025-0.035"(0.6-0.9 mm)(Installed)
• Dimensions: 15.08"x 10.88"x 23.14 in
• Net Weight: 48 lbs (21.8 kg)
• Machines Processes: Stick (SMAW), Flux-Cored (FCAW), TIG (GTAW), MIG (GMAW)
• IEC Rating: Stick (SMAW), Flux-Cored (FCAW), TIG (GTAW), MIG (GMAW)
• Input Current: 120V: 15A, 230V: 15.9A
• Output Range: 120V: 20-140A DC 230V: 20-220A DC Max. OCV : 56V
• Polarity: DC
• Rated Output: 120V: 105A/19.3/40% 230V: 215A/24.8V/30%
