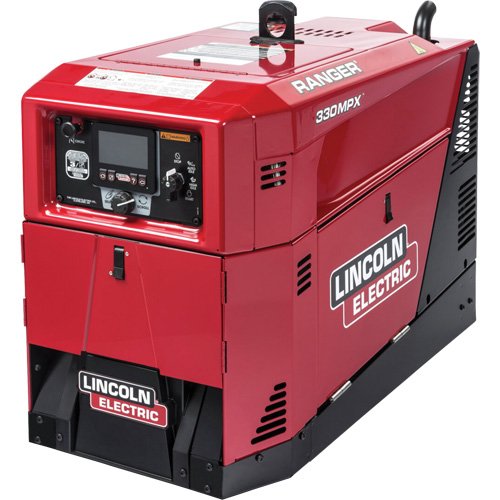

TTV725-Ranger® 330MPX Welder/Generator Engine Drive (Kohler®)

• Premium welder/generator with excellent multi-process capability for stick, TIG, MIG, gouging, and pipe applications
• Has a 20 percent smaller footprint and is 25 percent lighter than other machines in its class
• It transports to the field with less bulk and less effort, leaving more room for other tools and accessories needed on your job site
• Digital user interface offers a suite of advanced technology that improves weld performance and productivity
• Up to 60% quieter than other machines in its class to enhance safety and comfort in the workplace
• Ready.Set.Weld® technology' intuitive push-and-turn digital controls make setup a breeze
• Chopper Technology® provides easy starts, a smooth and consistent arc, and low spatter for optimal bead appearance
• ArcFX™ Technology provides instant graphical feedback on how settings affect the weld outcome
• CrossLinc™ Remote Technology communicates voltage control to the welding power source through one common weld cable
• Clean AC generator with 10 kW of continuous, consistent power to keep tools running without interruption
• Plenty of power at 330A/28V for 100% duty cycle to weld 1/4" 7018 electrode
• The maintenance screens allows the machine to record engine hours for proper service and maintenance
• Enable the supervisor and operator passcode protection to lock settings and weld modes
• Engine Driven Weld Modes include downhill pipe, touch-start pulse TIG, and pulse spool gun
• Kohler® OHV Command CH740 2-cylinder air-cooled gasoline engine

Additional Specifications

• Dimensions: 26"x 20"x 36 in
• Net Weight: 446 lbs (202 kg)
• Machines Processes: Stick (SMAW), Gouging (CAC-A), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G)
• IEC Rating: 292A/31.7V/100% @ 104°F (40°C)
• Max Rating: 292A/31.7V/100% @ 104°F (40°C)
• Output Range by Mode: CC-Stick: 35 – 330 A, Downhill Pipe (CC): 25-330 A, Touch Start TIG: 25 – 330 A, CV-Wire: 14 – 40 V, Arc Gouging: 90 – 330 A
• Single Phase Auxiliary Output: 10,000 Watts Continuous, 120/240V
• Auxiliary Output Frequency: 60 Hz
• Rated Gouging Carbon Diameter: 3/16"(5.0 mm)
