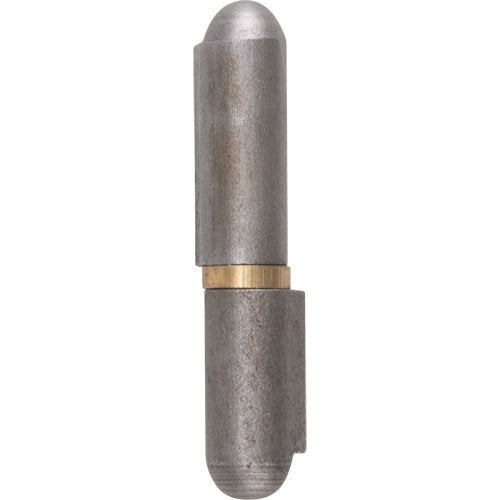

TTV434-Weld-On Hinge

• Ideal for gates, machinery doors, BBQ pits, electrical boxes, trailers and more
• Can be painted to match the door and frame
• Hinges are specially buffed and are free of burrs, allowing for improved paint adherence
• Comes standard with rounded ends and with/without grease fittings
• Installation: Ensure the hinge is welded along the full length of the weld tab
• Component replacement parts are available
• Built to print solutions are available upon request

Specifications

• Frame Material: Mild Steel w/Fixed Steel Pin
• Length: 1.969"
• Diameter: 0.315"
• Bushing Material: Brass
• Pin Diameter: 0.197"
• Thickness: 0.394"

Additional Specifications

• Grease Fitting: Not Included
• Manufacturer's Warranty: 1 Year Limited
