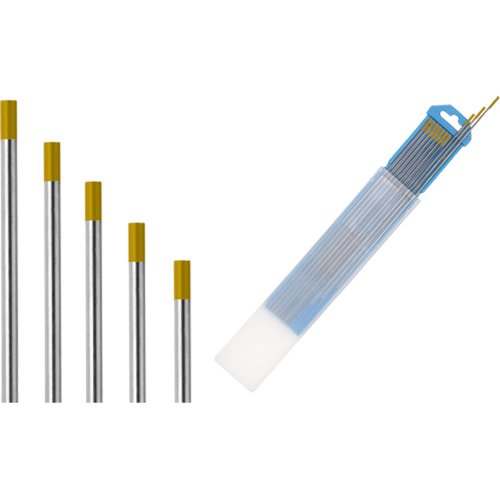

TTT405-Tungsten Electrodes

• TIG welding electrodes usually contain small quantities of metallic oxides which can offer the following benefits: - Facilitate arc starting - Increase arc stability - Improve current carrying capacity of the electrode - Reduce the risk of weld contamination - Increase electrode life
• Oxides used are primarily zirconium, thorium, lanthanum or cerium
• Additions are 1% - 4%, improve arc initiation, especially when direct current (DC) welding is employed
• Thorium oxide (thoria), effective in terms of long life and thermal efficiency
• Zirconium oxide (zirconia) has been commonly used for alternating (AC) TIG welding, welding aluminum
• Electrode length: 7"
• Each package contains 10 electrodes; 1.5% Lanthanated:
• Lowest erosion rate
• Wide current range
• No spitting
• Best DC arc starts and stability;

Specifications

• Diameter: 0.040"
• Length: 7"

Additional Specifications

• ISO Colour Chart: Gold AWS A5.12 EWLa-1.5 ISO6848 WL15
• Sold/Priced Per: Pack
• Qty/Pack: 10
• Type: 1.5% Lanthanated
• Colour: 1.5% Lanthanated
