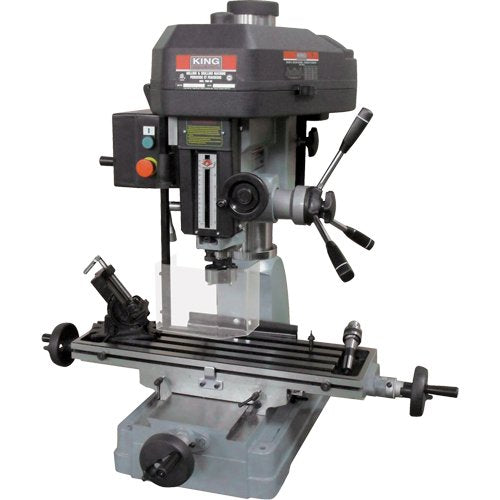

TS218-Milling Drilling Machines

• Spindle is equipped with four heavy-duty tapered roller bearings
• Table control hand wheels have large micrometer dials graduated in 0.001"
• Head swivels 360° and is easily raised and lowered
• Includes: 3" face cutter, 1/2" chuck with key, 3 1/2" angle vise and safety guard

Specifications

• Drilling Capacity: 1-1/4"
• No. of Speeds: 12
• Table Size: 8-1/4" W x 28-3/4" L
• Overall Width: 39"
• Overall Length: 43"
• Overall Height: 42"

Additional Specifications

• Diameter of Column: 4-3/4"
• Number of Speeds: 12 (150-2500 RPM)
• Size of T-Slot on Table: 5/8"
• Motor: 5/8"
• Voltage: 220 V, 1 phase, 60 Hz
• Approx. Shipping Weight: 600 lbs.
