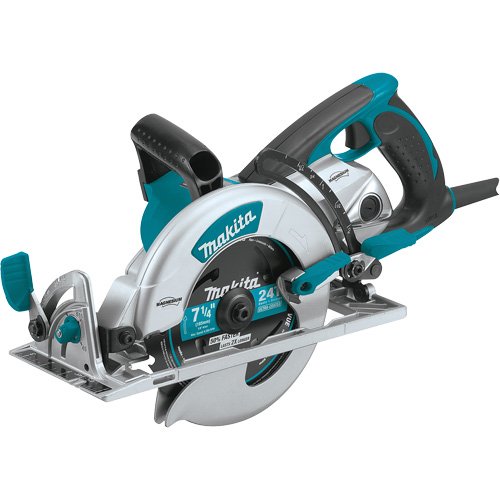

TNB196 - Hypoid Saw

TNB196 - Hypoid Saw

by TG Store
SKU: TNB196
$370.88 - $370.88
$370.88
$370.88 - $370.88
$370.88

Specifications:

  • Blade Diameter: 7-1/4"
  • No Load RPM: 4500
  • Amps: 15 A
  • Voltage: 120 V

Description

  • Ideal for framers, home builders, masons, and contractors
  • High quality, hardened steel hypoid gears do not wear like bronze-alloy worm drive gears
  • High performance magnesium base plate, blade case and motor housing
  • Bevel Capacity of 51.5° with Positive Stops at 22.5°, 45° and 51.5° ideal for cutting trusses and rafters
  • Rafter hook enables convenient storage on 2x materials when not in use
  • Ergonomic soft rubber top and rear grip design for vibration absorption and comfortable operation
  • Includes: 7-1/4" C.T. Blade 24CT; Hex Wrench 6
  • Arbor Size: 5/8" (15.88 mm)
  • Max. Cutting Capacity at 50°: 1-9/16" (40 mm)
  • Max. Cutting Capacity at 0°: 2-3/8" (60 mm)
  • Length: 17-3/4" (450 mm)
  • Weight: 13.2 lbs. (6 kg)
    •
