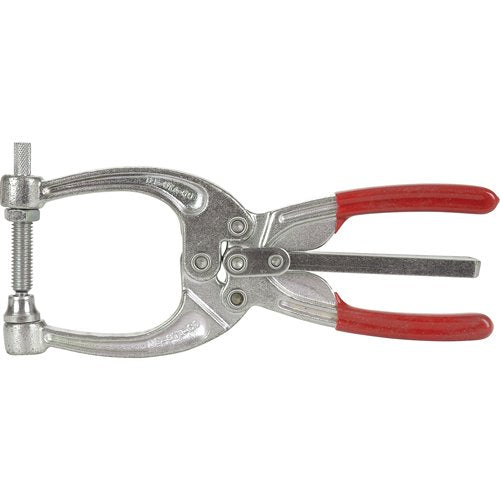

TN097-Plier Hold-Down Clamps - 424 Series

• Quick action pliers offer excellent workholding capacity, they are portable to many applications and highly versatile. Only normal hand pressure is required to close and lock clamps in place. Clamp thickness may be adjusted by turning the threaded spindle. Once set, the clamp can be used repeatedly at that opening. Standard style clamps open by pulling handles apart. Trigger release style pull the two-way release (up and down) for easy one-handed release. Has a single 1/4-20 adjustable neoprene-tipped spindle assembly. Clamp opens by manually pulling handles apart.

Specifications

• Clamping Force: 200 lbs.

Additional Specifications

• Clamping Thickness (A): 1
• Throat Depth (B): 1.125
• Overall Length (C): 4.5"
• Spindle Thread: 1/4 x 20
• Weight: 1/4 x 20
