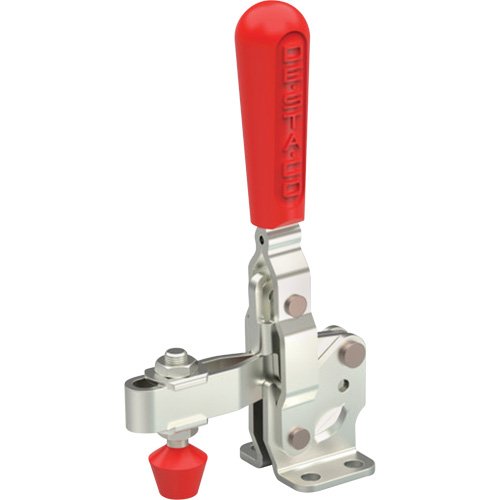

TN064-Vertical Hold-Down Clamps - 207 Series

• The most popular type of hold-down clamp, manufactured in capacities of up to 6000 lbs. The hold-down bar exhibits a minimum 90° opening angle and can be solid or U-shaped. Stainless steel units are available for the food industry or corrosive environments. Available in solid bar model, including bolt retainer (TN141) 500-lb. capacity. U-bar model includes two flanged washers (TN125) and accommodates 5/16" spindle (not supplied).

Specifications

• Style: Vertical
• Clamping Force: 375 lbs.

Additional Specifications

• Dimensions" A: 5.5
• Dimensions" B: 3.78125
• Dimensions" C: 1.375"
• Dimensions" D: 1.5625
• Base L" x W": 1.5625
• Weight: 0.67 lbs.
