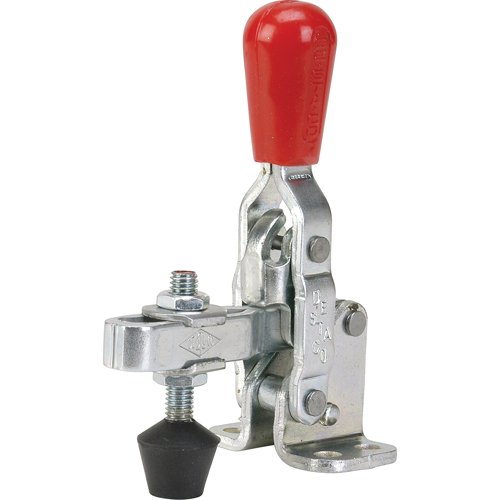

TN061-Vertical Hold-Down Clamps - 202 Series
by DESTACO
Original price
$35.85
-
Original price
$35.85
Original price
$35.85
$35.85
-
$35.85
Current price
$35.85
- The most popular type of hold-down clamp, manufactured in capacities of up to 6000 lbs. The hold-down bar exhibits a minimum 90° opening angle and can be solid or U-shaped. Stainless steel units are available for the food industry or corrosive environments. 200-lb. capacity version of 201 series. Furnished with bonded neoprene-tipped 1/4-20 spindle (TN134) lock nuts and flang washers (TN123).
Specifications
- Style: Vertical
- Clamping Force: 200 lbs.
Additional Specifications
- Dimensions" A: 3.75
- Dimensions" B: 2.375
- Dimensions" C: 1
- Dimensions" D: 15/16
- Base L" x W": 15/16
- Weight: 0.35 lbs.
