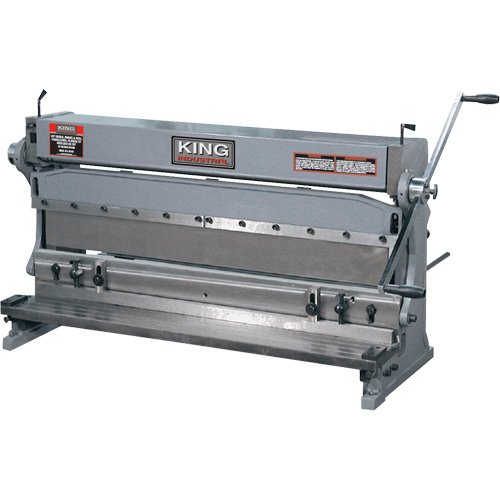

TMA112-Shears, Brake & Roll

• Sturdy cast iron frame
• Sturdy cast-iron frame
• Dual edge, reversible shear blade
• One female "V" shaped die
• Slip rolls are precision turned, ground and polished with wire grooves
• Includes: adjustable length stop, height stop block and extension bars with 90° angles
• Includes: Adjustable length stop, height stop block and extension bars with 90 degree angles

Specifications

• Shear Max. Thickness: 20 Gauge
• Shear Max. Length: 12"
• Shear Material Stop Range: 2 1/2" - 10 5/8"
• Brake Max. Thickness: 20 Gauge
• Brake Shut Height: 2-1/2"
• Brake Material Stop Range: 1 3/4" - 10 1/4"

Additional Specifications

• No. of Slip Rolls: 3
• Brake Male Die Sizes: 4", 3", 2", 2", 1"
• Slip Roll Max Thickness: 20 Gauge
• Slip Roll Maximum Thickness: 20 Gauge
• Slip Roll Max Length: 20 Gauge
• Slip Roll Roller Diameter: 1 1/2"
• Slip Rolls Maximum length: 10-3/4"
• Slip Roll Minimum Radius: 13/16"
