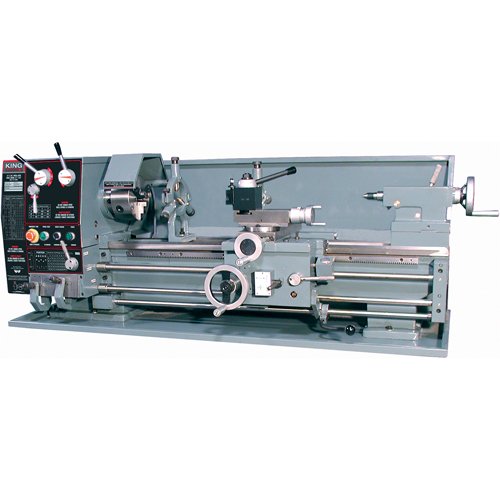

TMA091-Gearhead Metal Lathe with Taper Attachment & Stand

• Safety guard with limit switch protection
• Line interruption switch system needs a restart after a power failure
• Powerful 1.5 HP motor
• Guideway and gears in headstock are all hardened and precision ground
• Includes: 6"-3 jaw chuck, 8"-4 jaw chuck, Imperial & metric gears, Quick change tool post, Steady rest, Follow rest, 10" DI-4 cam lock face plate, Thread chasing dial indicator, MT#3 dead centre, MT#3 arbor taper, 1/2" drill chuck, Full length splash guard, Tool box, Chuck keys, Hex keys, Stand

Specifications

• Distance Between Centers: 36"
• Swing Over Bed: 12"
• Swing Over Gap: 18"
• Spindle Bore: 1-1/2"
• Overall Width: 28"
• Overall Length: 65"
• Overall Height: 28"

Additional Specifications

• Swing Over Cross Slide: 7-1/4"
• Taper in Headstock: #5 Morse
• Taper in Tailstock: #3 Morse
• Width of Bedways: 7-1/4"
• Total Travel of Cross Slide: 7-1/4"
• Total Travel of Top Slide: 3-3/8"
• Spindle Speeds: 9 (60 - 1500 RPM)
• Thread Cutting Range: 40 (4 - 112 TPI) 30 (0.2 - 4.5 mm)
• Motor: 8.7 Amps
