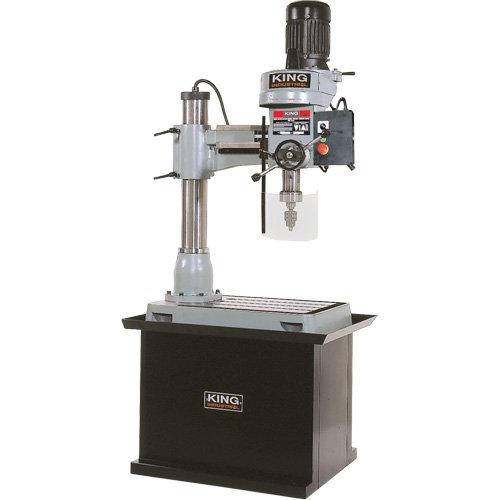

TMA087-Radial Drilling Machine with Stand

• Safety guard with limit switch protection
• Magnetic line interruption switch needs a restart after a power failure
• Head swivels 180° and is easily raised and lowered
• Head travels up to 14"
• Spindle is equipped with heavy-duty tapered bearings
• Powerful 1.5 HP motor
• Includes: Forward reverse switch, 1/2" chuck with key, 3-1/2" angle vise, Safety guard, Stand

Specifications

• Chuck Size: 1/2"
• Speeds: 5
• Table Dimensions: 19-5/8" W x 21-5/8" L
• Spindle Taper: #3 Morse

Additional Specifications

• Drilling Capacity: 1-1/4"
• Max. Distance Spindle Nose to Table: 21-1/4"
• Swing: 38-1/2"
• Spindle Stroke: 5-1/4"
• Column Diameter: 5-1/4"
• Head Travel: 14"
• Motor: 8.8 Amps
• Voltage: 220 V, 1 Phase, 60 Hz
• Dimensions (L x W x H): 34" x 24" x 90"
