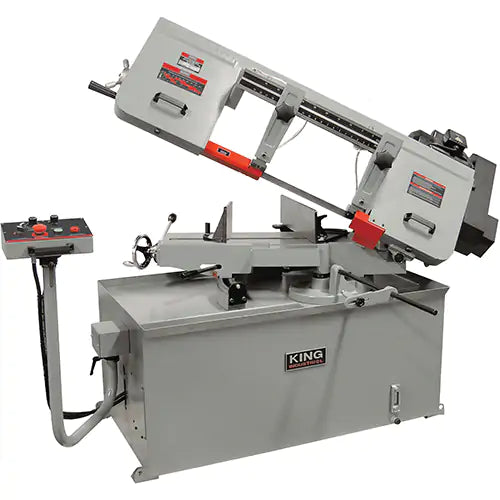

TMA041-10" x 18" Variable Speed Swivel Metal Cutting Bandsaws

• Swivel base from 0° to 45°
• Position adjustable control panel and automatic shut-off
• Adjustable hydraulic down feed control
• Carbide ball bearing blade guides
• To ensure reliable accurate cuts, both adjustable control arms can be positioned as close to the cut as possible
• Exclusive 24 V control panel
• Coolant system with regular valves provide an even flow of coolant to the blade

Specifications

• Cutting Capacity at 90°: Round 10" and 10" x 18" Rectangular
• Cutting Capacity at 45°: Round 7-7/8" and 7-7/8" x 7-7/8" Rectangular
• Overall Width: 28"
• Overall Length: 81"
• Overall Height: 48"
• Style: Horizontal

Additional Specifications

• Speeds: (73-312 FPM) variable
• Blade: 121 3/4" x 1" x 0.035"
• Motor: 2 HP, 2.6 A, 3 phase, 60 Hz
• Voltage: 600 V
• Weight: 600 V
