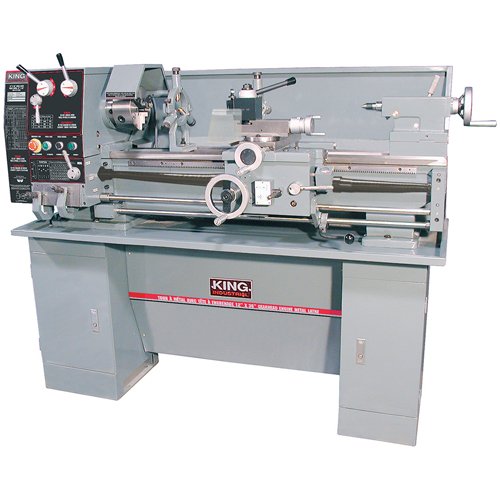

TMA038-Gearhead Metal Lathes- With Taper Attachements

• Safety guard automatically shuts lathe off when lifted
• Includes: 6" 3-jaw chuck, 8" 4-jaw chuck, replacement gears, quick change tool post, steady rest, follow rest, 10" DI-4 camlock face plate, thread chasing dial indicator, MT#3 dead center, MT#3 arbor taper, 1/2" drill chuck, full length splash guard, tool box, chuck keys and hex keys

Specifications

• Distance Between Centers: 36"
• Swing Over Bed: 12"
• Swing Over Gap: 18"
• Spindle Bore: 1-1/2"
• Overall Width: 28"
• Overall Length: 65"
• Overall Height: 49"

Additional Specifications

• Swing over cross slide: 7 1/4"
• Taper in headstock: MT#5
• Taper in tailstock: MT#3
• Total travel of cross slide: 6 3/8"
• Total travel of top slide: 6 3/8"
• Spindle speeds: 9 (60-1500 RPM)
• Thread cutting range: 4-112 TPI
• Motor: 1.5 HP, 8.7 A, 1 phase, 60 Hz
• Voltage: 220 V
