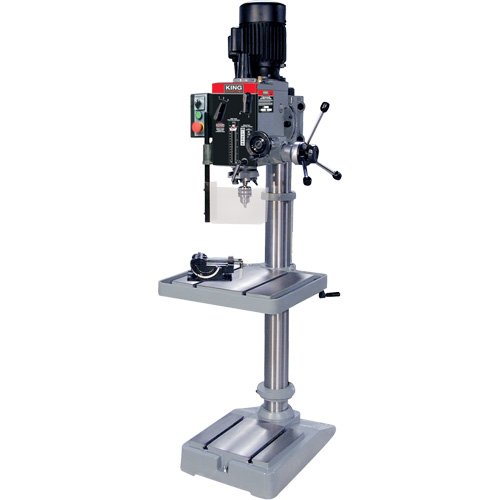

TMA005-Gearhead Drilling Machine

• Safety guard with limit switch protection
• Magnetic line interruption switch needs a restart after a power failure
• Spindle is equipped with four heavy-duty tapered roller bearings
• Powerful 1.5 HP motor
• Forward and reverse switch
• Includes: 1/2" chuck with key, 3-1/2" angle vise, Safety guard

Specifications

• Chuck Size: 1/2"
• Speeds: 6
• Table Dimensions: 19-1/2" W x 21-3/4" L
• Spindle Taper: #3 Morse

Additional Specifications

• Drilling Capacity: 1-1/4"
• Max. Distance Spindle Nose to Table: 22"
• Max. Distance Spindle Nose to Base: 47"
• Swing: 20-7/16"
• Spindle Stroke: 20-7/16"
• Diameter of Column: 4-1/2"
• Face Mill Capacity: 4"
• End Mill Capacity: 3/4"
• Motor: 2 Amps
