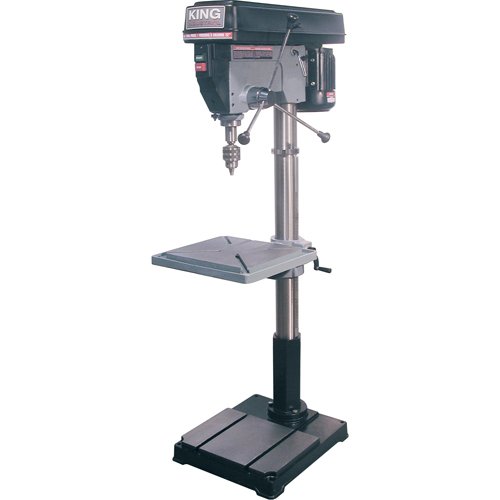

TM214-Floor Drill Presses

• w/o Safety Guard
• Spindle is supported by high quality ball bearings
• Cast-iron pulleys reduce vibrations
• Tilting table for angular drilling
• Light fixture incorporated into the head casting illuminates the work table (light bulb not included)
• Comes with non-slip rubber feed handles

Specifications

• Swing: 22"
• Chuck Size: 3/4"
• No Load Speed: 4200 RPM
• Table Dimensions: 18-3/4" W x 16-1/4" L
• Overall Width: 33"
• Overall Length: 18-3/4"
• Overall Height: 69"

Additional Specifications

• No. of Speeds: 12
• Speed Range: 180-4200 RPM
• Spindle Taper: #4 Morse
• Motor: 1 HP, 1 phase, 60 Hz, 12.5 A @ 110 V, 6.25 A @ 220 V
• Voltage: 1 HP, 1 phase, 60 Hz, 12.5 A @ 110 V, 6.25 A @ 220 V
• Weight: 360 lbs.
