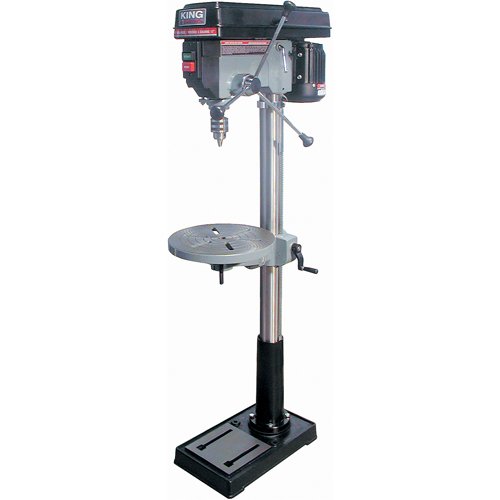

TM213-Floor Drill Presses

• w/o Safety Guard
• Spindle is supported by high quality ball bearings
• Cast-iron pulleys reduces vibrations
• Comes with non-slip rubber feed handles
• Tilting table for angular drilling
• Light fixture incorporated into the head casting illuminates the work table (light bulb not included)
• Includes: 5/8" drill chuck and key

Specifications

• Swing: 17"
• Chuck Size: 5/8"
• No Load Speed: 3400 RPM
• Overall Width: 25"
• Overall Length: 13-3/4"
• Overall Height: 64"

Additional Specifications

• No. of Speeds: 16
• Speed Range: 240-3400 RPM
• Spindle Taper: #2 Morse
• Motor: 12 A @ 110 V, 6 A @ 220 V 1 HP, 1 phase, 60 Hz
• Voltage: 12 A @ 110 V, 6 A @ 220 V 1 HP, 1 phase, 60 Hz
• Weight: 185 lbs.
