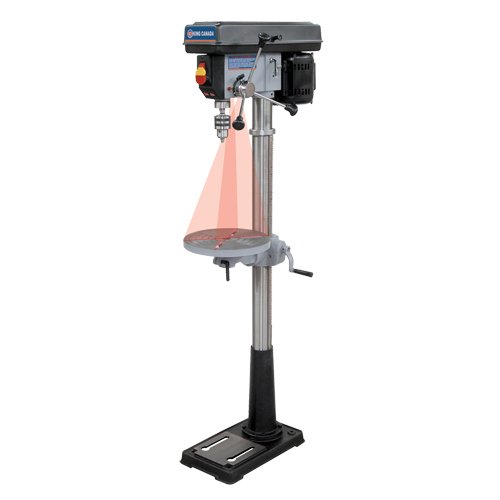

TM209-Floor Drill Presses With Laser

• Spindle is supported by high quality ball bearings
• Cast-iron pulleys reduce vibrations
• Comes with non-slip rubber feed handles
• 45° tilting table for angular drilling
• Locking depth stop for accurate repetitive blind hole drilling
• Includes: 5/8" drill chuck, and key
• Light socket incorporated into drill press head (standard light bulb not included)

Specifications

• Swing: 13"
• Chuck Size: 5/8"
• No Load Speed: 3600 RPM
• Overall Width: 24"
• Overall Length: 11-3/4"
• Overall Height: 62-1/2"

Additional Specifications

• Max. Distance Chuck to Table: 23-1/2"
• Max. Distance Chuck to Base: 45"
• No. of Speeds: 16
• Speed Range: 220-3600 RPM
• Spindle Taper: 220-3600 RPM
• Motor: 7.5 A, 1 phase, 60 Hz
• Voltage: 110 V
• Weight: 120 lbs.
