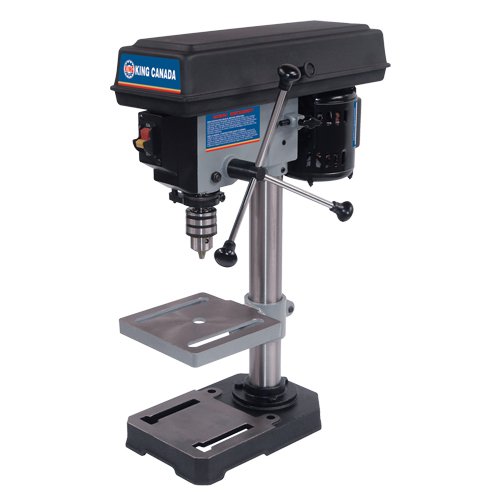

TM197-Drill Presses

• Spindle is supported by high quality ball bearings
• Switch located at the front of the machine for easy access
• Positive depth stop for quick and easy adjustment
• 45° tilting table for angular drilling
• Includes: 1/2" drill chuck and key

Specifications

• Swing: 8"
• Chuck Size: 1/2"
• No Load Speed: 3100 RPM
• Table Dimensions: 6-1/2" W x 6-1/2" L
• Overall Width: 16-1/2"
• Overall Length: 6-3/4"
• Overall Height: 23"

Additional Specifications

• No. of Speeds: 5
• Speed Range: 620-3100 RPM
• Spindle Taper: #33 JT
• Motor: 2.5 A, 1 phase, 60 Hz
• Voltage: 2.5 A, 1 phase, 60 Hz
• Weight: 38 lbs.
